PLC Splitters

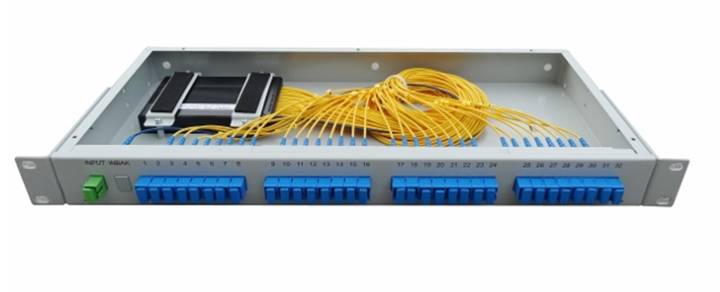

Frame Type Splitter



Technical specification:

Port Configuration

1×2

1×4

1×8

1×16

1×32

1×64

2×2

2×4

2×8

2×16

2×32

Operating Wavelength (nm)

1260~1650

Fiber Type

ITU G657.A fiber / customer require

Pigtail Length(M)

customer Specified

Insertion Loss(dB) (S/P)

4.1
3.8

7.3
7.1

10.5
10.2

13.7
13.5

16.9
16.5

21.0
20.5

4.2
3.9

7.8
7.5

11.5
11.2

14.5
14.2

17.7
17.4

Return Loss (dB)
(S/P)

50
55

50
55

50
55

50
55

50
55

50
55

50
55

50
55

50
55

50
55

50
55

Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

0.8

1.5

1.5

2.0

2.5

PDL (dB)

0.2

0.2

0.3

0.3

0.3

0.4

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

Operating Temperature(℃)

-40~+85

Storage  Temperature(℃)

-40~+85

1. Within the operating temperature,the uniform splitter meets the technical specification of the tabe1.
2. Ordering Information:Customized service is available.
