Broadband Access Boxes

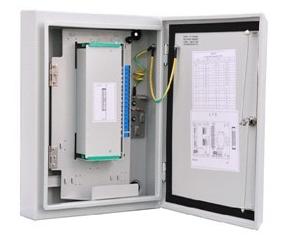

Fiber Optic Splitting Box



Introduction

· It is generally used in the terminal link of FTTH access network, landing or wall-mounted installation.



Features

· Body material: SMC, service life around 20 yesrs,

· Double layer design, top layer is for distribution, under layer is for welding,

· Adopting drawer type module design, obtaining good interchangeability and universality.



Technical Index

· Working  temperature: -40℃ - +60℃

· Environment humidity:≤95%(+40℃)

· Voltage resistance:≥3000V(DC)/10Ma/1min

· Insulation resistance: ≥2×104MΩ/500V

· Shell size:383mm×285mm×100mm

· Air pressure:70kpa-106kpa

· Door opening angle: ≥180°

· Adapter:SC/FC/LC



Ordering Information:Customized service is available.
